Power Distribution Module 08

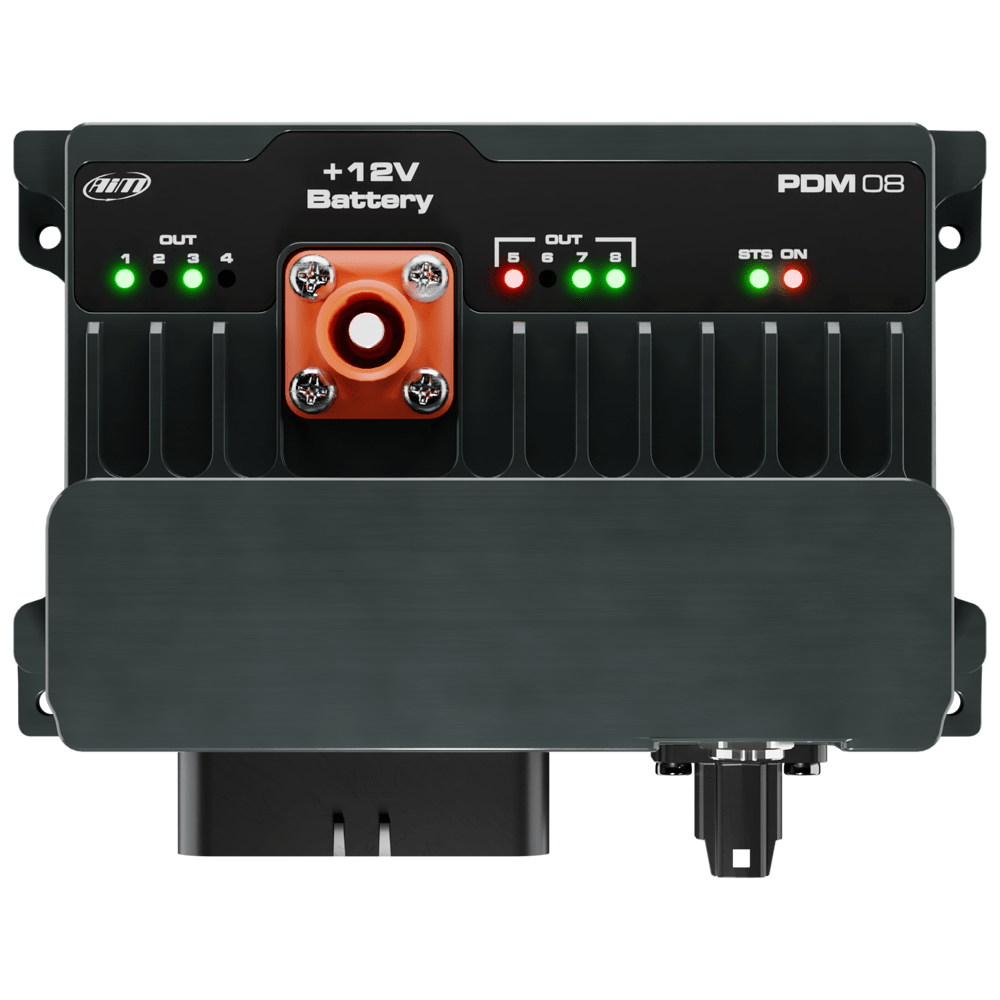

The AiM PDM08 is an 8 channel advanced power distribution module designed to power a multitude of vehicle circuits removing the need the traditional fuse boxes and relays. It allows for a simplified wiring harness with increased reliability and control functions.

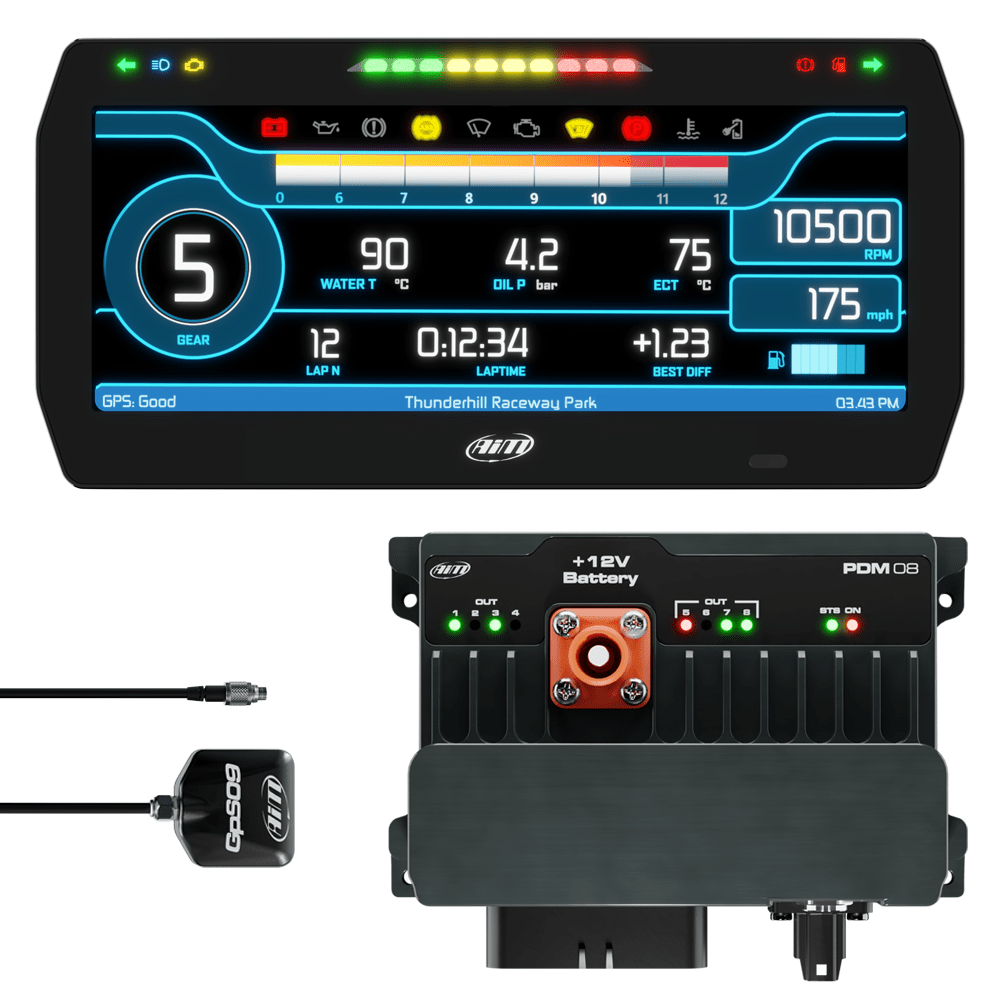

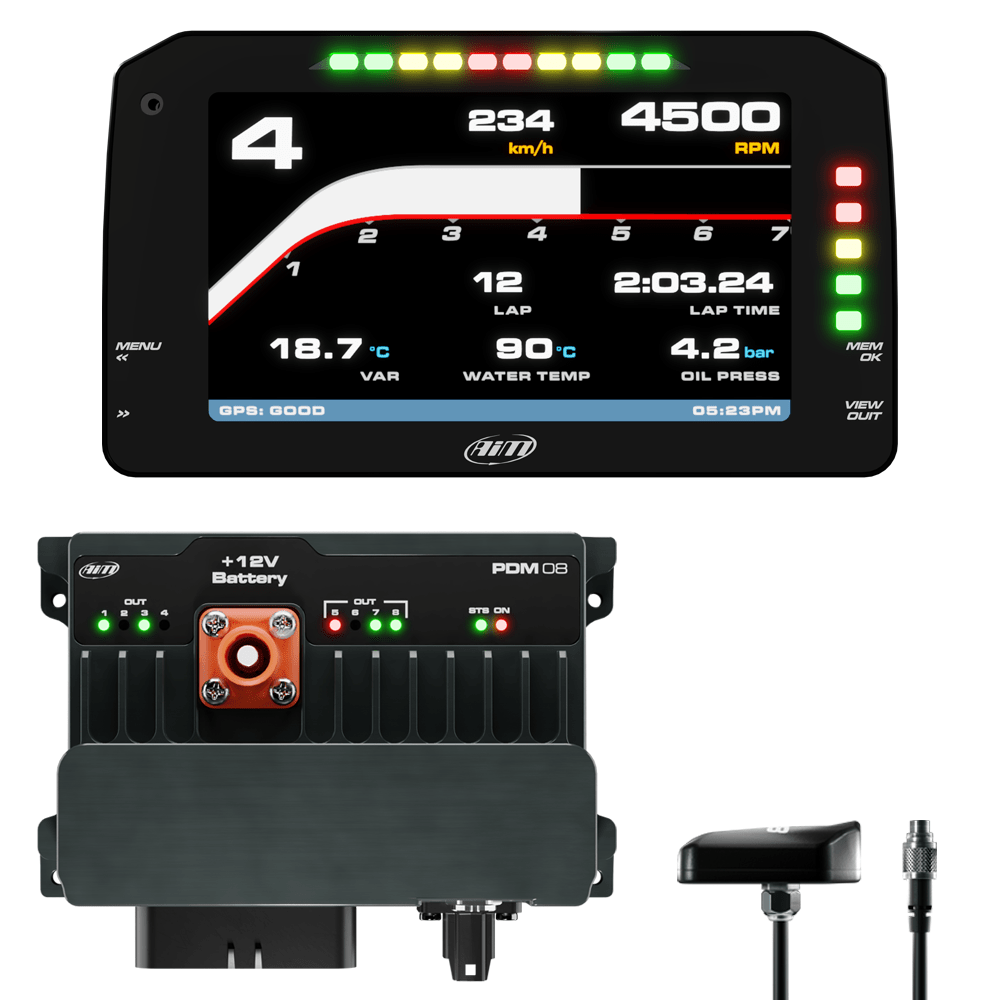

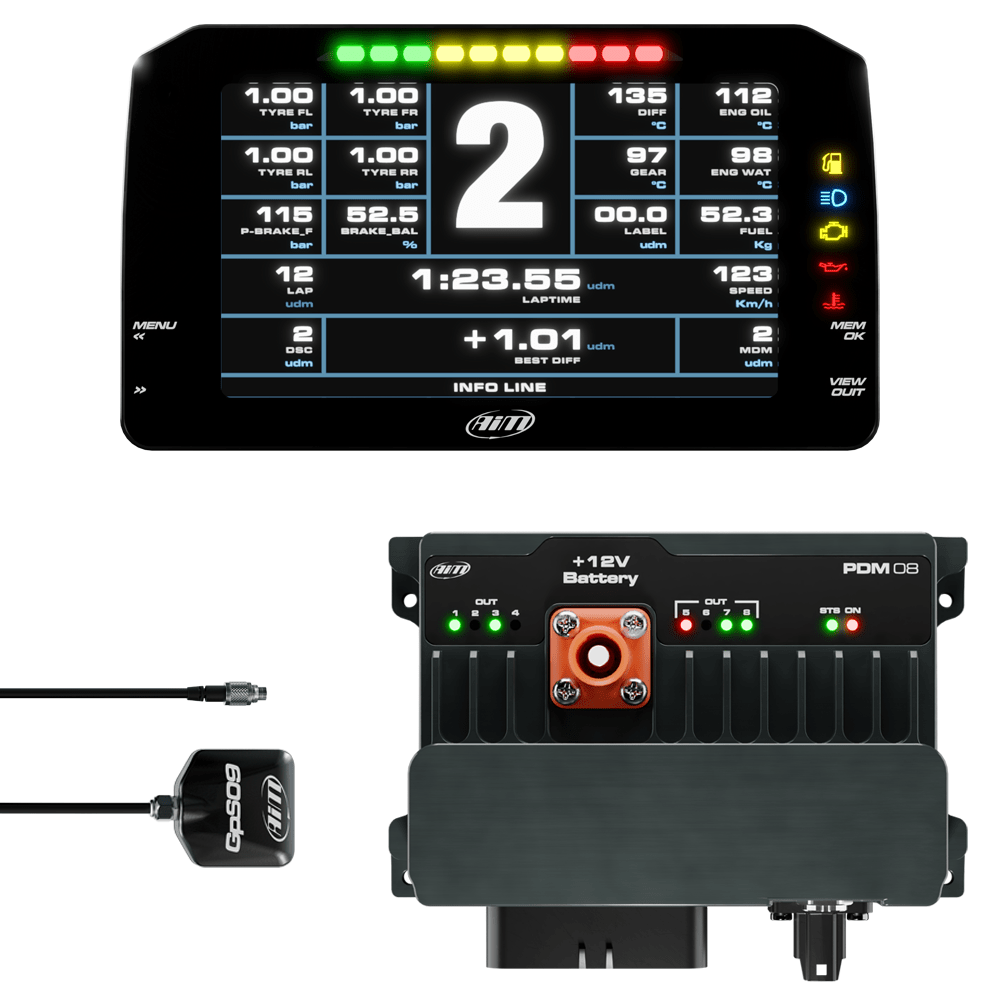

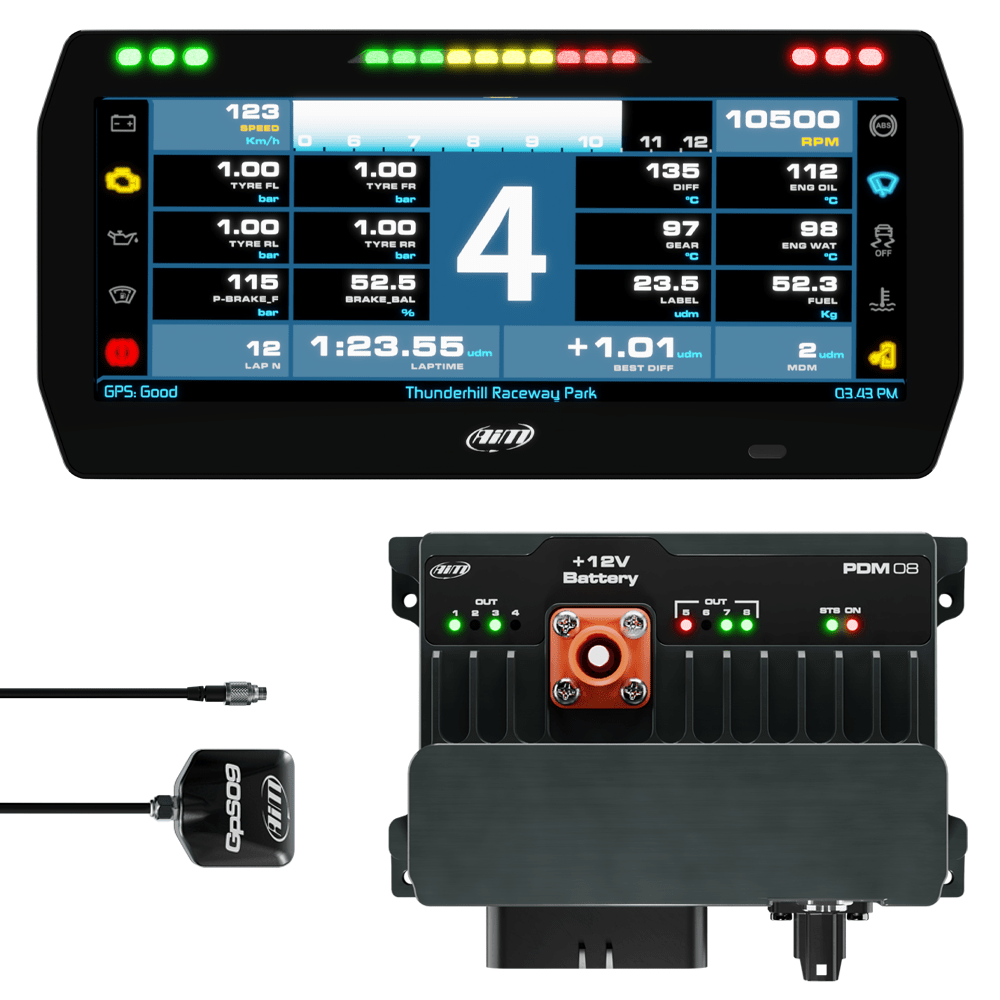

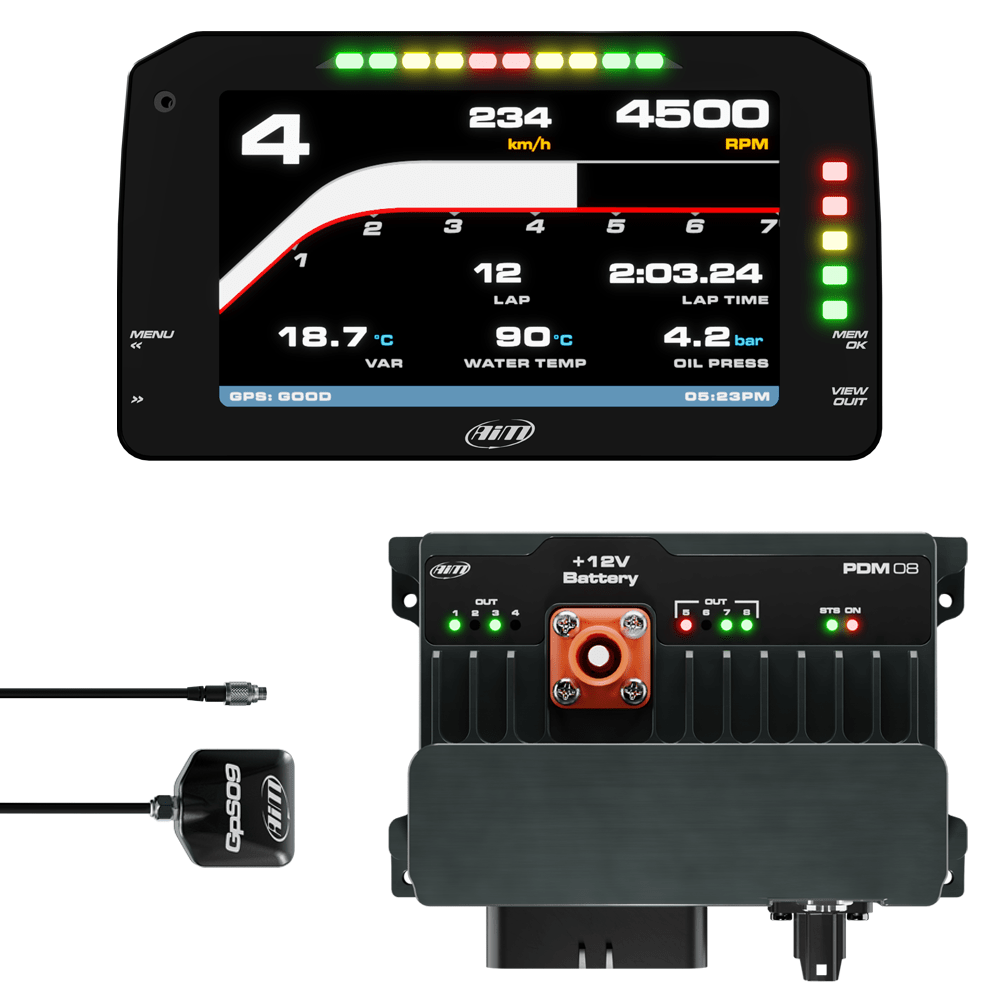

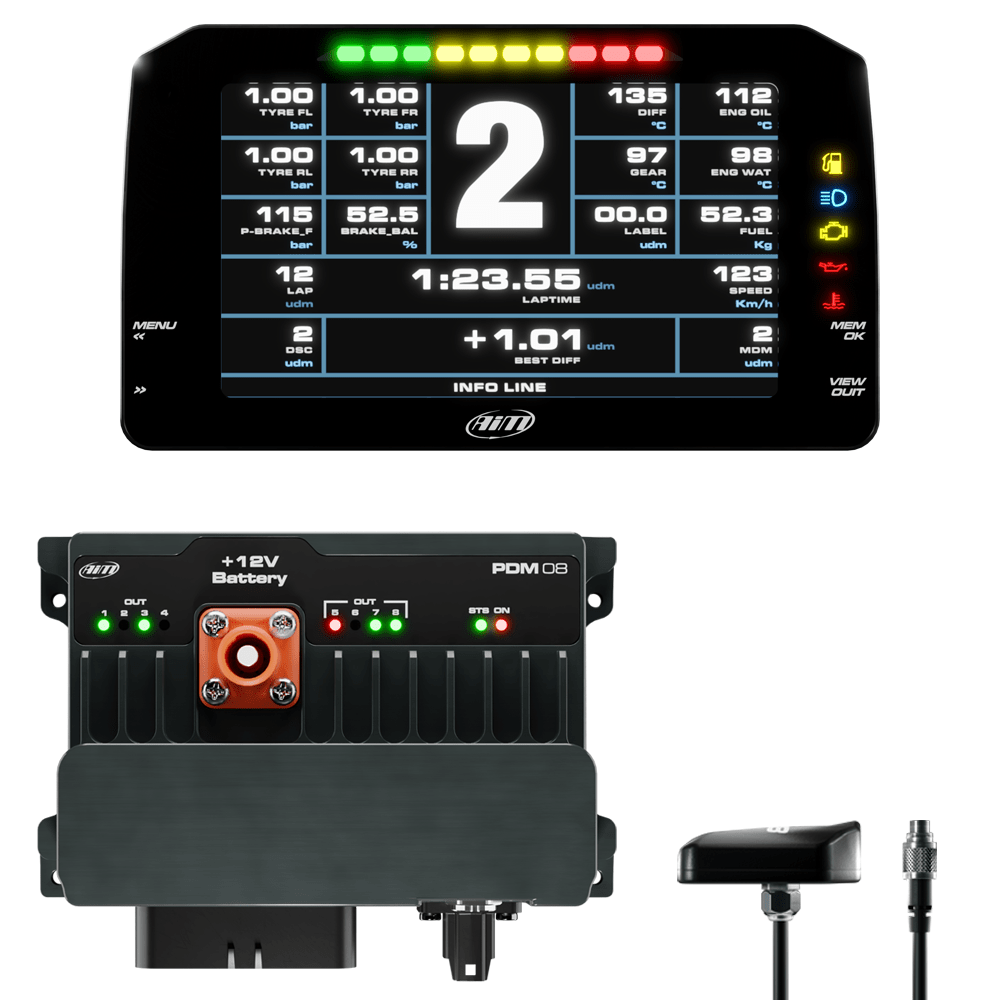

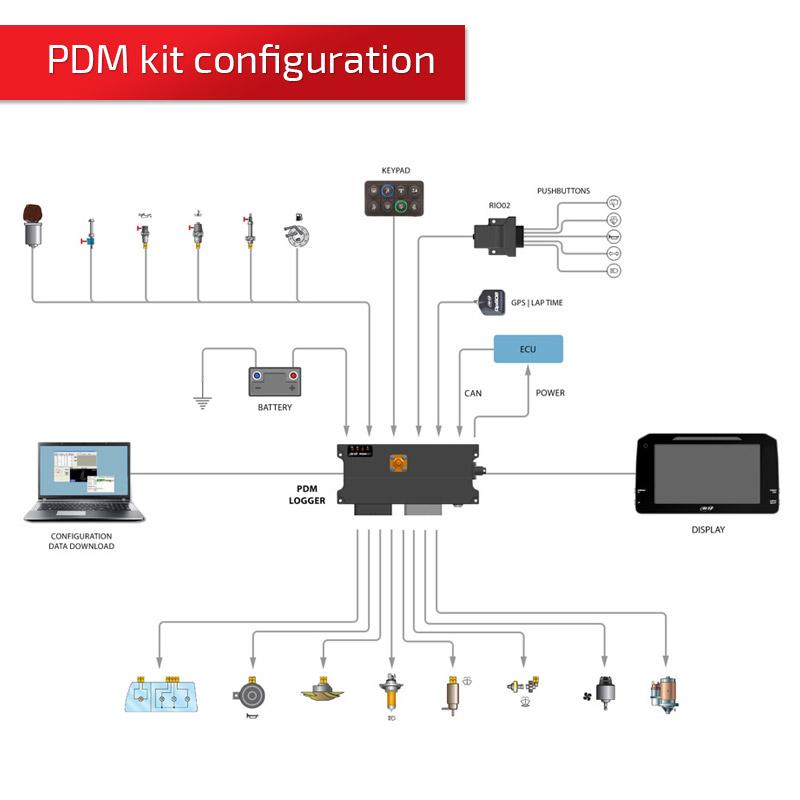

The PDM08 is available on its own like this one, or with a choice of 6″ or 10″ dash displays. The PDM08 is also capable of receiving data from the vehicles ECU and even includes a data logger and and GPS module for lap liming and track mapping. (See listing for PDM08 with GPS).

Simplifies electronic installations with greater control.

8 outputs, ideal for controlling vehicle electrical circuits.

Built in data logging facility to log all PDM outputs and ECU data plus lap timing.

Dash controller with 6″ or 10″ dash display options.

GPS Module options for lap timing and track mapping.

Rugged aluminium case designed to with stand harsh Motorsport environments.

PDM Power Outputs

The AiM PDM08 features 8 x 15A current outputs with a total continuous max current 120A.

Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, short circuits, high / low voltage, the number of fault retires and the time between the reties is user definable. All outputs can be configured as PWM’s for a soft start / stop. All the PDM circuits can be set up and monitored within our Race Studio 3 Software.

PDM08 Inputs

The PDM08 features 6 x analogue / digital inputs and 2 x speed inputs.

PDM08 Data?Management?

?

The PDM08 is capable of receiving and recording data from the following sources:

ECU – Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS – Lap time and position / Expansions / Push Buttons – From RIO02 module or any commercial CAN keypad / PDM outputs – Currents and status of each channel individually / Other user defined math channels.

GPS Option ( Not Included)

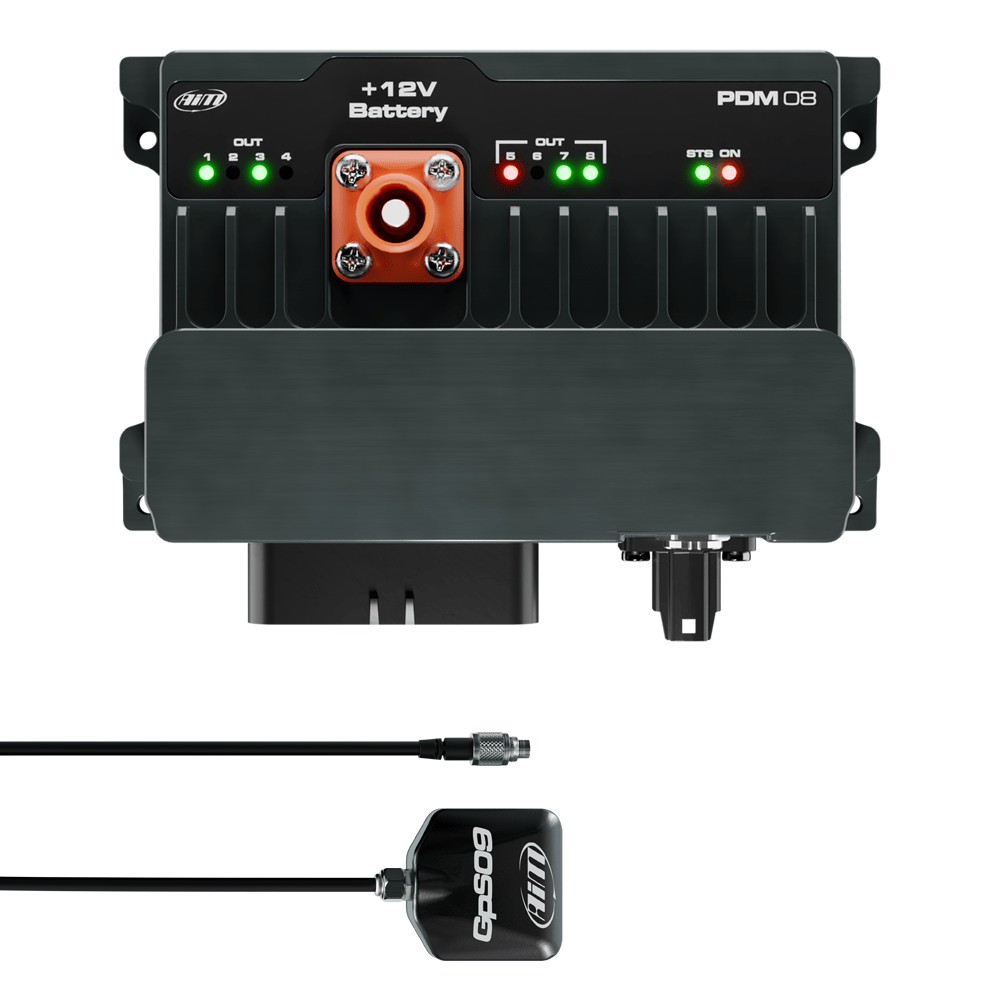

The GPS Module option provides easy lap timing and lap position for track mapping. The PDM has over 4000 tracks in the database so once you arrive at the track the system already knows the timing points so you can just get on with your driving. The GPS Module is available with various lead lengths to suit differing applications.

Dash Display Option ( Not Included)

?

Suitable for replacing all of the dashboard gauges and wiring lamps, these TFT dash displays are available in 6″ or 10″ versions. Both versions have fully configurable displays and offer a range of layouts. These displays can also double up as a reversing mirror by using our separate camera, which is sold separately. Ideal for cars with limited rear vision. Up to two cameras can be added for both front and rear views. The mirror camera connects to the PDM through the 5 pin binder connector.
