AiM PDM08

?

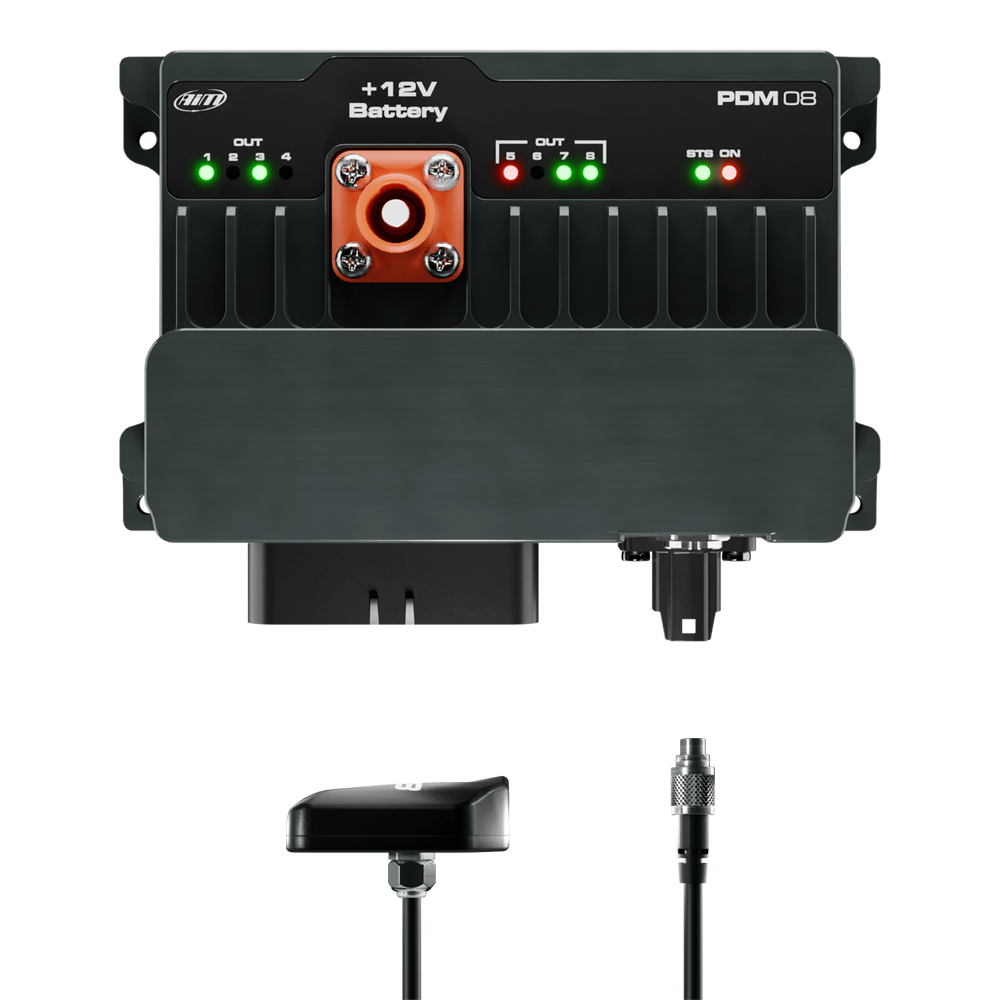

The AiM PDM08 is an 8 channel advanced power distribution module designed to power a multitude of vehicle circuits removing the need for traditional fuse boxes and relays.

It allows for a simplified wiring harness with increased reliability and control functions. The PDM08 is available units own or with a choice of 6″ or 10″ dash displays. It is also capable of receiving data from the vehicles ECU and even includes a data logger and GPS module foe lap timing and track mapping.

?Simplifies electronic installations with greater control
8 outputs, ideal for controlling vehicle electrical circuits
Dash controller with 6″ or 10″ dash display options
GPS Module option for lap timing and track mapping
Rugged aluminium case designed to withstand harsh environments
Built in data logging facility to log all PDM outputs and ECU data plus lap timing.

PDM08 Power Outputs

?

The PDM08 features 8 x 15A continuous outputs with a total continuous max current 120A.

Each of the outputs provides feedback to the data logger to provide vital information such as open circuits, high / low voltage, the number of fault retires and the time between the reties is user definable. All outputs can be configured as PWMs for a soft start / stop. All of the PDM circuits can be set up and monitored via our Race Studio 3 Software.

PDM08 Inputs

?

The PDM08 features 6 x analogue/digital inputs and 2 x speed inputs.

PDM08 Data Management?

?

The PDM08 is capable of receiving and recording data from the following sources:

ECU – Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS – Lap time and position / Expansions / Push Buttons – From RIO02 module or OUR CAN Keypads / PDM outputs – Currents and status of each channel individually / Other user defined math channels.

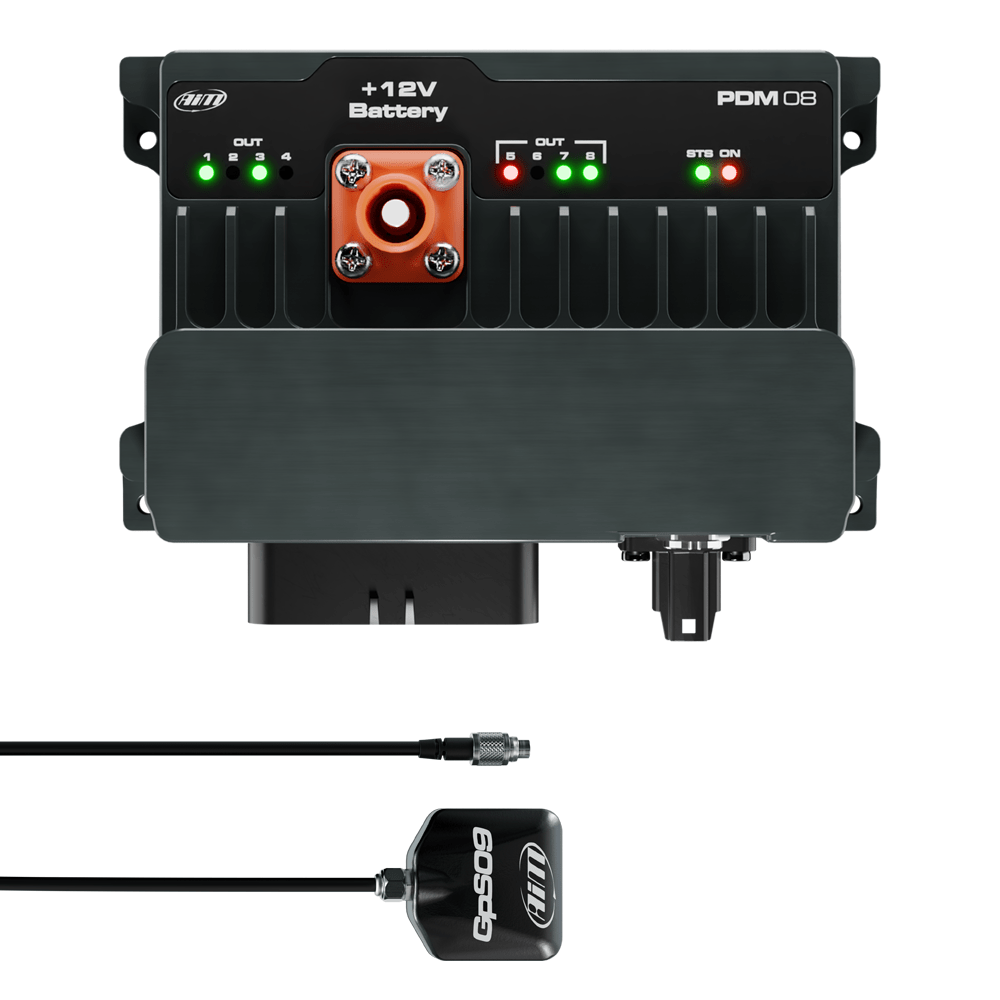

GPS08 Included

?

The GPS module option provides easy lap timing and lap position for track mapping.

The PDM has over 4000 race tracks in the data base so once you arrive at the track the system already knows the timing points so you can just get on with your driving.

The GPS module is available in various lead lengths to suit differing applications

ECU – Over 1000 protocols available / Digital / Analogue Inputs / Internal 9 axis EMU / GPS – Lap time and position / Expansions / Push Buttons – From RIO02 module or OUR CAN Keypads / PDM outputs – Currents and status of each channel individually / Other user defined math channels.

?

Dash Display Option

Suitable for replacing all of the dashboard gauges and warning lamps these TFT dash displays are available in 6″ or 10″ versions. Both are fully configurable displays and offer a range of layouts.
