Forge High Capacity Piston Valve Kit For Audi TTRS or RS

We recommend servicing your valve every 3 years, or 20,000 miles, whichever comes sooner.

This valve kit was developed for those who have tuned, or plan to tune, their Audi TTRS or Audi RS3 in excess of 450hp, as it was observed that cars over 450bhp were randomly getting errors from the stock solenoid valve not functioning. Whilst the stock valve will operate as designed, with the boost level necessary for 450bhp, the stock valve couldn’t move the amount or volume of air it needed to, so the ECU was seeing too great a positive boost in the MAP readings between gearchanges and assuming the stock valve wasn’t functioning correctly.

We looked closely at this issue, and noted that there would be no real fix for this as the size of the hole for the valve is too small in the stock elbow. We decided that we would re-design and produce our own elbow, allowing a much larger DV port, which in turn would allow fitment of a larger valve to take advantage of it. The internal flow of the elbow has improved and removed restriction within the valve.

With the engine management on this engine being MAP based rather than MAF based, which is unlike many other Audi engines, we have also incorporated the option into the kit, of being able to run as a recirculation valve or with an atmospheric discharge/blow off. We are pleased to say that this now solves all issues that owners were experiencing.

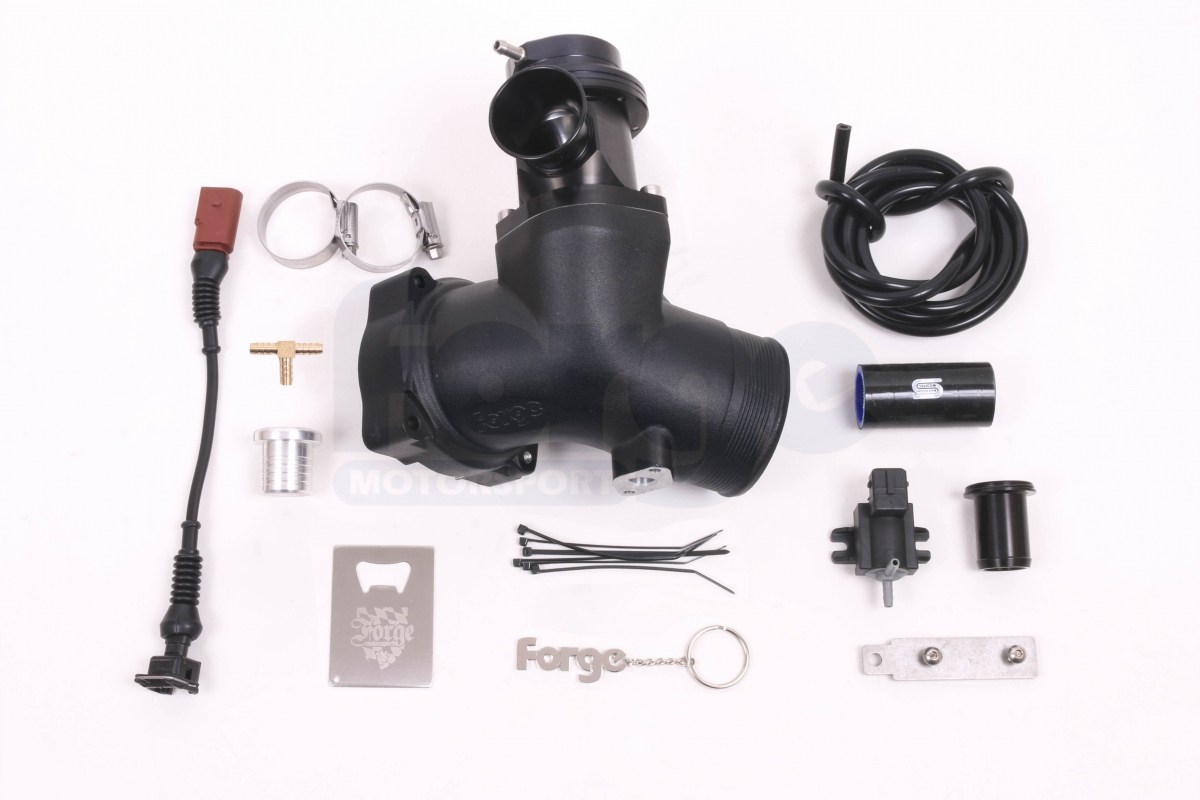

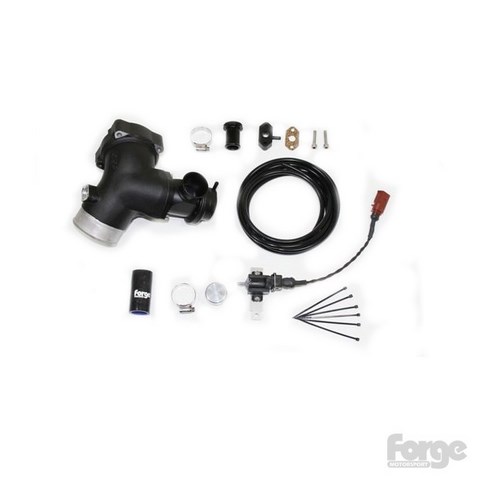

In The Box:

• 1 x FMARSDV Valve
• 1 x Inlet Hard Pipe
• 1 x Wiring Harness
• 1 x Solenoid, Bracket, and Screws
• 1 x T – piece
• 6 x Cable Ties
• 1 x 2000mm of 4mm Vacuum Tube
• 2 x M6 x 30 Socket Cap Bolts
• 2 x M6 x 16 Socket Cap Bolts
• 1 x 25mm Blanking Plug
• 2 x 35mm Hose Clamps
• 1 x Straight Silicon Hose (25mm x 65mm)
• 1 x Forge USB Instructions
• 1 x Forge Keyring, Bottle Opener and Sticker
