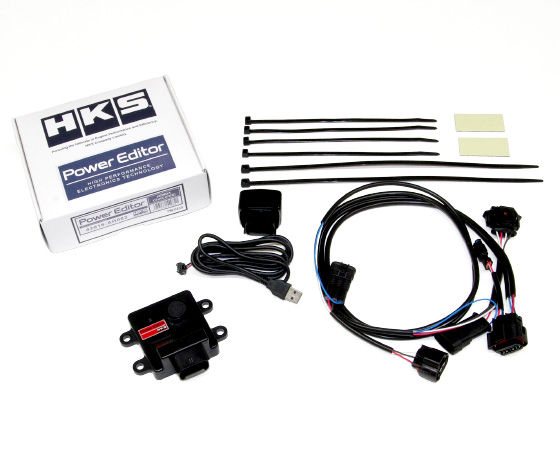

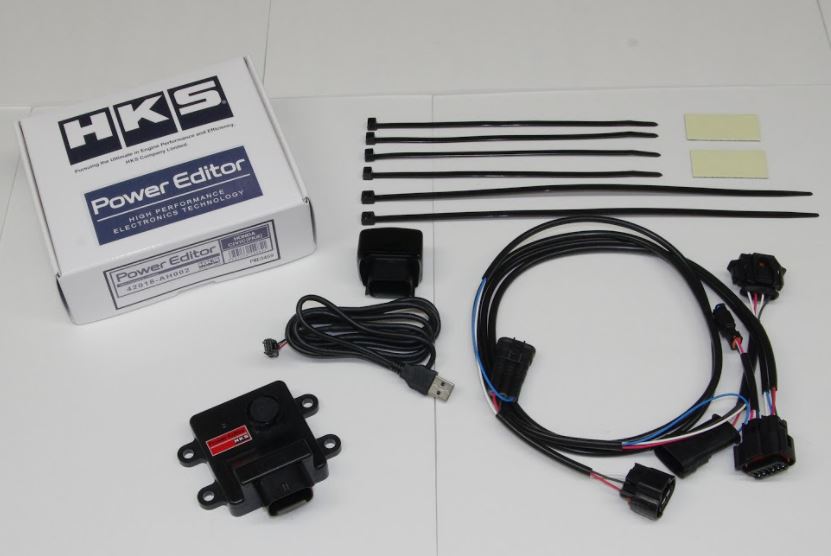

HKS Power Editor for Fk8 Civic

Outline

• Easy coupler-on installation to increase the boost pressure.
• Boost pressure increase data is preset to Power Editor.
• The reset connector is included.
• Connecting the connector can reset the data to its original after installing this product.
• Boost pressure increase data is preset to Power Editor. Easy Writer is NOT included in the product. Download Easy Writer from HKS website.
• The provided USB connecting harness is required to connect with a PC.

Main Functions

• Boost pressure increase for turbo vehicle：To increase the boost pressure of a stock vehicle.
• Status Confirmation LED：To check the unit status by LED.
• Edit the boost increase data : To edit the preset data to user’s original data to increase the boost pressure.
• ※PC with Windows10, 8.1, 8, or 7 is required.

Features

• Installing this Power Editor between the pressure sensor and pressure sensor harness can activate the boost increase function of this product.
• Easy Writer for Power Editor is available to edit the preset data.
• To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
• Replacing Power Editor with the provided reset connector can reset the data to the original and easily check the difference.
• Ideal for both MT & AT vehicle lightly tuned with aftermarket exhaust system, air cleaner, and/or catalyzer.

Easy Writer for Power Editor

Preset Data

•  HONDA CIVIC TypeR [FK8] (JDM)

Performance

Stock (Actual Value) 247.5kw (336.5ps) 435.5Nm (44.4kgf・m)
With Power Editor 259.2kW (352.5ps) 472.7Nm (48.2kgf・m

Type-R has the engine with originally overwhelming engine output. With Power Editor, the torque increases over the entire speed range, and driving becomes more powerful.

â–  Recommended Power Editor installation location and Pressure sensor location

â–  Note

This product is designed to be installed to a stock vehicle or vehicle that HKS products are installed.
This product is to increase the boost pressure of the vehicle with stock turbine and not designed to use with the vehicle the upgraded turbo.
This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

※Tuning ECU for MT model with “METAL CATALYZER” and/or “GT III-FX Turbine Kit” is under development. (Release will be 2019 Spring or later.)

Vehicle Classification Model Engine Model Year Code No. Price Remarks
CIVIC TYPE R DBA- FK8 K20C 17/09- 42018-AH002
Compatible with 6MT model.
