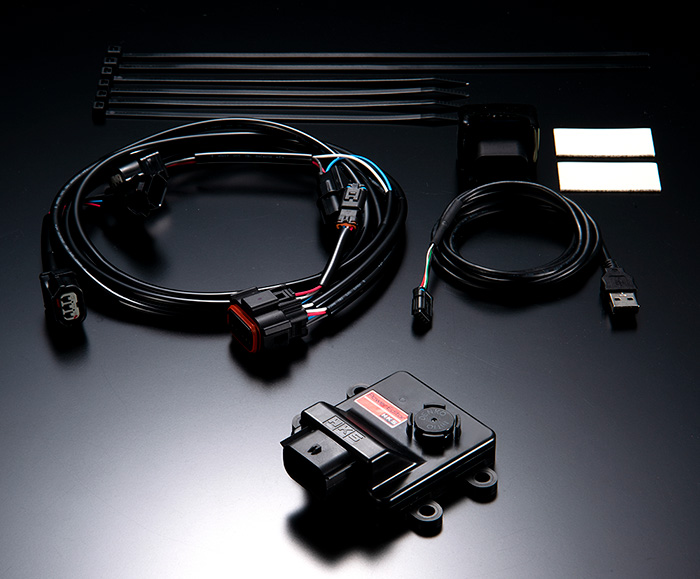

HKS Tuning Power Editor – Toyota Supra 3.0L A90 MK5

£402

14 products sold in last 11 hours
Selling fast! Over 4 people have in their cart
25 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.

â– Outline

  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.
    Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.



â– Main Functions

  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user’s original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.



â– Features

  • Install this Power Editor between “pressure sensor” and “pressure sensor harness” can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.




Easy Writer for Power Editor



â– Note

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.



â– Preset data

● TOYOTA SUPRA RZ [DB42]　JDM SPEC

● Installed parts when the data measured   Super Turbo Muffler / Dry Carbon Racing Suction



â– Performance

Stock Power Editor
Power Increase － 25.9kW(35.2PS) / 5200rpm
Torque Increase － 54.9Nm(5.6kgf・m) / 3600rpm
Power 269.3kW(366.2PS) / 5800rpm 294.8kW(400.8PS) / 5200rpm
Torque 571.5Nm(58.3kgf・m) / 3100rpm 606.1Nm(61.8kgf・m) / 3600rpm
Boost 87.3kPa (0.89kgf/cm2) 107.9kPa (1.1kgf/cm2) (予測値)




※当社車両を当社シャシダイナモにて計測した数値の為、気象条件や車両個体差、計測機器などで異なります。



â– Recommended Power Editor installation location and Pressure sensor location
