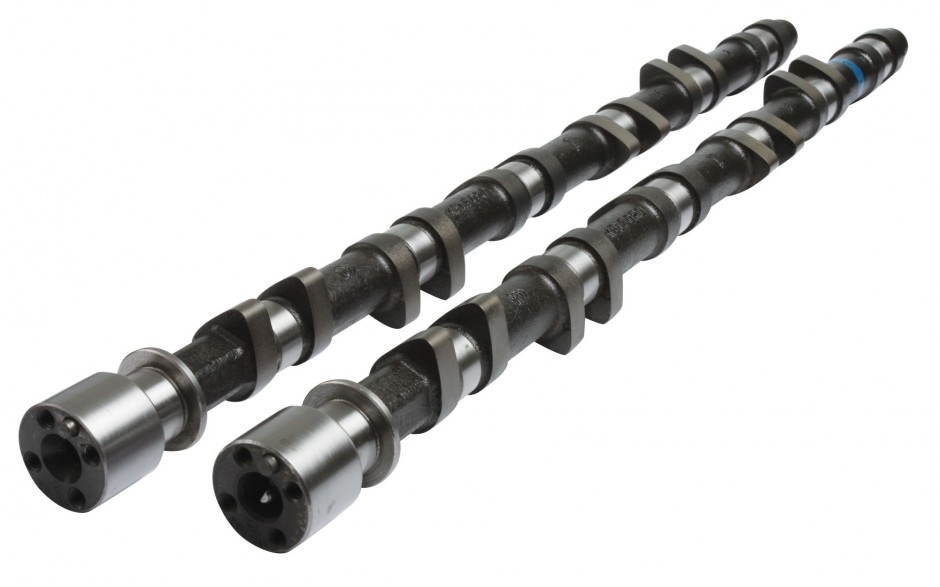

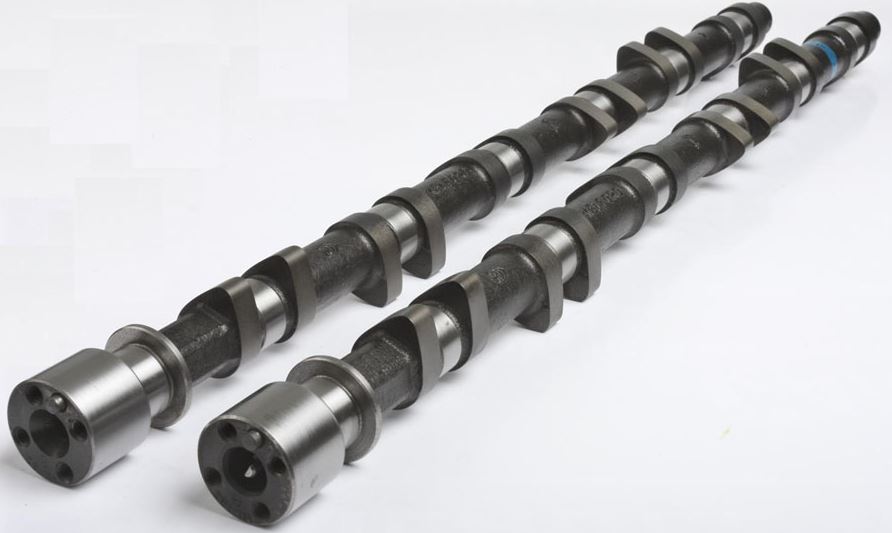

Kelford Nissan RB26-DETT R32 & R33 Mech Performance Cam

274&270/274 Degrees advertised duration, 10.55mm&10.50mm/10.50mm lift.

274/270 Degree split lobe high performance cams t suit a range of motorsport applications. These are especially effective with engines running E85 fuel.

Performance Cams for Nissan RB26DETT

The Kelford Cams range of camshafts for Nissan RB26DETT engines has been designed to suit a range of applications, from mild street cams with no head clearancing required, right through to the most aggressive, no-expense-spared race builds.

If you can’t find your perfect camshaft within our catalogue, designing custom profiles is our specialty! Simply order the custom camshaft and provide us all the details of your build. Confidential development for race teams is also available.

RB camshafts are fitted with two different kinds of triggers; by default we fit the spline and hand half moon type, if you need the yoke shaped type please let us know when ordering.

Engine Make:		Engine Model:				Part Number:
NISSAN		RB26DETT				182-S
Valve Clearance:		Intake:	0.25mm	Set	COLD	at the	CAM
		Exhaust:	0.30mm	Set	COLD	at the	CAM
Cam Lift:		Intake:			10.80mm	Exhaust:	10.80mm
Rocker Ratio:		Intake:			1	Exhaust:	1
Nett Valve Lift:		Intake:			10.55mm	Exhaust:	10.50mm
Advertised Duration @	0.10mm	Intake:			274	Exhaust:	274
Duration @	1.00mm VALVE LIFT	Intake:			236	Exhaust:	236
Timing @	1.00mm VALVE LIFT	IVO:			8 BTDC	EVO:	54 BBDC
		IVC:			48 ABDC	EVC:	2 ATDC
Suggested Centre Lines:		Intake:			110	Exhaust:	116
VALVE	Lift @ TDC	Intake:			1.88mm	Exhaust:	1.18
